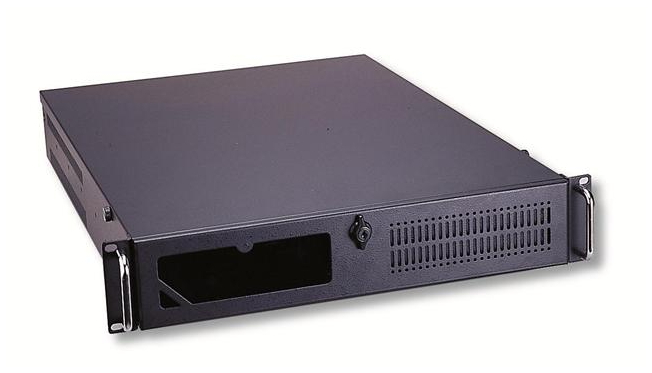

Guanghsing 2U 19" Rackmount 3 slots ATX Server Chassis

Guanghsing 2U 19" Rackmount 3 slots ATX Server Chassis 2x5.25" & 2x3.5" Open bay & 3x3.5" HDD Hidden bay (WxHxD) 483x88x650mm

  • Product Details
  • Specification
  • Dimension Sheet
  • Related Products
  • Data Sheet

    • Product CodeGH-231V-B

    • Product NameGuanghsing 2U 19" Rackmount 3 slots ATX Server Chassis

    • Base Weight(Kg)17

    • Length(Cm)65

    • Width(Cm)48.3

    • Height(Cm)8.8

    • Identity

    • Carton Length(Cm)59

    • Carton Width(Cm)26

    • Carton Height(Cm)83

Standard: EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard) Beige or Custom
System Board: Up to 12"x13" (EATX, ATX, microATX)
Drive Bays: 2x5.25" & 2x3.5" Open bay & 3x3.5" HDD Hidden bay
Power Supply: 2U Single 480W (Optional)
Cooling Units: 3x8cm Fan (42.5 CFM ea.)
Expansion Slot: 7 Low Profit Slots
Connector Port (front): 2x USB Ports(Optional)
Indicators: LEDs for Power ON/OFF HDD Activity
Buttons: Power ON/OFF Momentary (Rocker) System Reset
Hold Down bar: No
Thermal Card: No
Front Door: Single Door with 1 Thumb Twist Keylock
Air Filter: No
Dimension (L x W x H) (mm): 483 x 88 x 650
Humidity: 5% - 95% Non-condensing
Product Applications: -
No Sheet Uploaded
No Related Products
DescriptionDate
GH-231ATX.pdf 04/07/2013
