Standard:
|
EIA RS-310C 19 Rackmount Standard
|
|
Construction:
|
Heavy Duty Cold Rolled Electroplated Steel
|
|
Color:
|
Black
|
|
System Board:
|
Up to 9.6"x9.6" (microATX, mini-ITX)
|
|

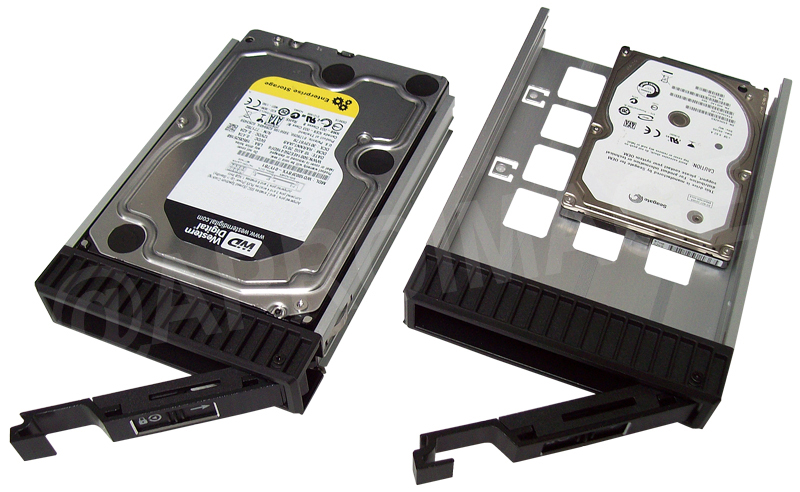

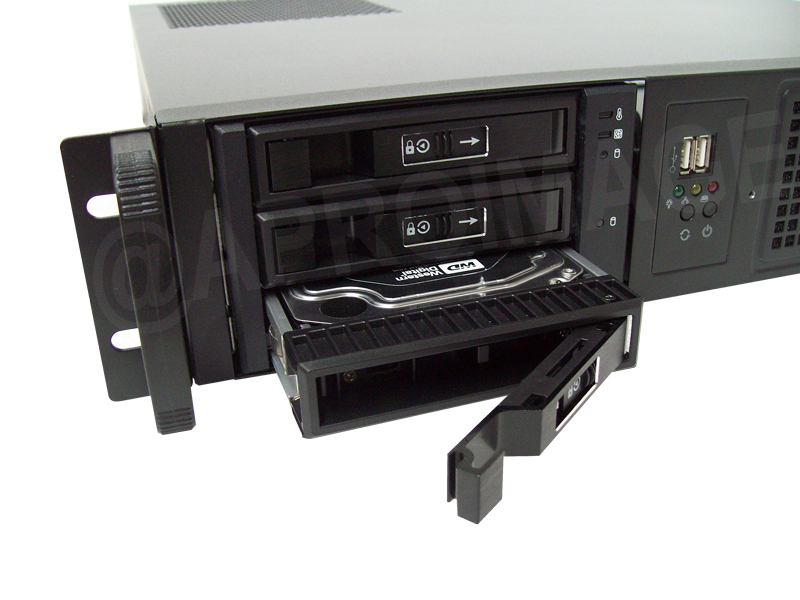

Drive Bays:
|
3 x 2.5"/3.5" hot-swap and 2 x 3.5" HDD bay
|
|
Power Supply:
|
PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm) (Optional)
|
|
Cooling Units:
|
2x8cm Fan (41 CFM ea.)
|
|
Expansion Slot:
|
4 slot low profile cards (max. depth at 170mm)
|
|
Connector Port (front):
|
2x USB Ports
|
|
Indicators:
|
LEDs for Power ON/OFF HDD Activity
|
|
Buttons:
|
Power ON/OFF Momentary (Pushbutton) System Reset
|
|
Hold Down bar:
|
No
|
|
Thermal Card:
|
No
|
|
Front Door:
|
No
|
|
Air Filter:
|
Inside Front Door (Washable)
|
|
Dimension (L x W x H) (mm):
|
380 x 483 x 88.5
|
|
Humidity:
|
5% - 95% Non-condensing
|
|
Product Applications:
|
-
|
